DigiMano 1000

  • DigiMano 1000



3-1/2 Digit 0.5 in LCD.
Polarity Display:

The negative sign (-) is displayed when there is a vacuum reading.

Accuracy: 0.25% full range, +/- 1 count (Pressure Only).

Operating Temperature:

0 C to 40 Degrees C
Media Compatibility:

Non-corrosive fluids and gases.

Maximum Pressure: Double the rated
Low Battery Indicator: LED on if battery Voltage is less than 6.8 volts.


One 9 volt alkaline battery or optional AC adapter.

Physical Dimensions:

Size: 3 x 2 x 1.4 inches (7.6 x 5.0 x 3.6 cm)


6.5 oz (.18 kg)

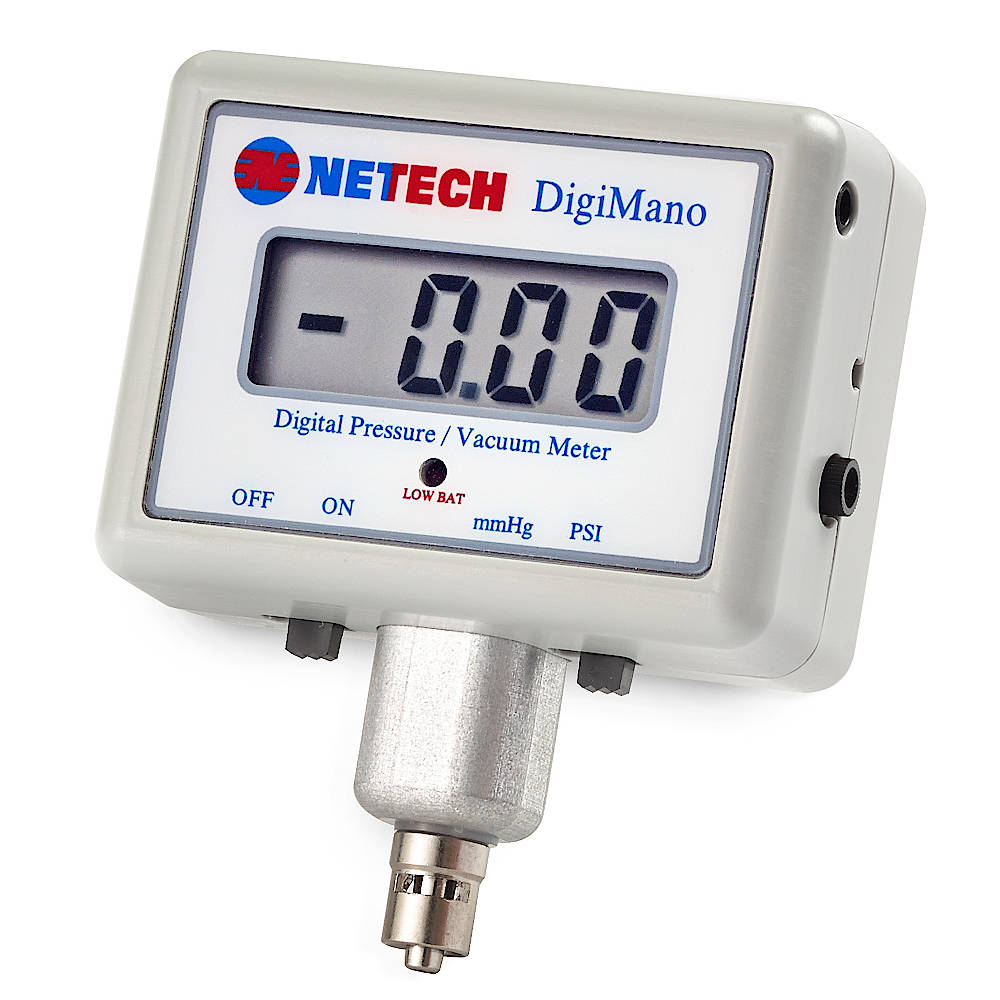

The DigiMano 1000, Pressure / Vacuum Meter is a portable digital instrument designed to measure the pressure of non-corrosive fluids and gases.

This versatile instrument results in one of two engineering units on a large 3 digit LCD Display

The DigiMano 1000, Pressure / Vacuum Meter has an accuracy of 0.25 full scale. Seven models with different engineering units and pressure ranges are available.

To provide superior performance, the DigiMano 1000, Pressure / Vacuum Meter incorporates one of the latest semiconductor sensors. It is powered by one 9V alkaline battery. Optionally, an AC Adapter may be used.

The DigiMano 1000, Pressure / Vacuum Meter is CE marked and is shipped with a Certificate of Calibration traceable to the NIST.

The DigiMano 1000, Pressure / Vacuum Meter is a rugged instrument that performs its measurements quickly, accurately, and with ease.


  • Affordable: Costs far less than most comparable Digital Pressure Meters.
  • Portable and Lightweight: Just 3 x 2 x 1.4 in size. Battery operated.
  • Consistent: External Zero Balance assures long term stability.
  • Versatile: Dual Units design with mmHg / PSI or mmHg / InH2O. No need for special fittings.


  • Product Code: DM1000
  • Availability: In Stock
