Patient Simulators - also known as physiological simulators or vital sign rhythm generators are essential tools for biomedical personnel to accurately test and verify the performance of patient monitoring systems such as cardiac monitors, ECG machines.  A human patient simulator simulates physiological parameters such as ECG, arrhythmia waveforms, blood pressure, respiration, temperature.

Netech offers four different models, each with its own unique set of features, including a multi-parameter simulator, a standalone ECG simulator and Arrhythmia Simulator, Cardiac output simulator, and an EEG simulator.

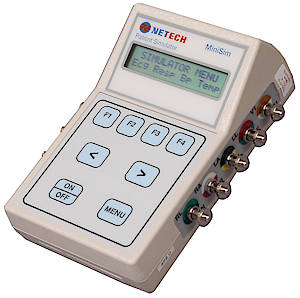

MiniSim 1000 (ECG -Basic)

MiniSim-1000 (Basic) is a powerful basic human patient simulator and patient rhythm generator device designed for testing the performance of all ECG monitoring instrumentation quickly and easily. This device is a full 12 lead ECG simulator with 14 user-selectable rates ranging from 30 to 350 BPM, and 14 amplitudes from 0.15 to 5 mV.

Highlight Features:

  • Compact, lightweight and easy-to-use
  • Menu-driven operation
  • Best Value
  • Battery or AC operation

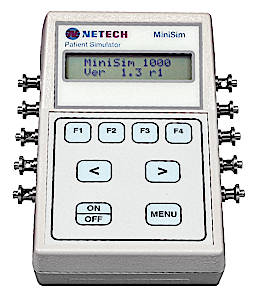

MiniSim 1000 (Advanced)

MiniSim 1000 (Advanced) is a multi-parameter Patient Simulator and vital sign rhythm generator designed for testing and verifying the performance of patient monitoring systems quickly and easily. It is an ECG simulator that mimics arrhythmia, blood pressure, respiration, and temperature, as well as performance waveforms including sine, triangular, pulse, and square waves.

Highlight Features:

  • Compact and easy-to-use
  • 12 Lead ECG, 2 Blood Pressure Simulations, Respiration / Apnea, Temperature
  • ECG Performance Waveforms
  • Battery or AC operation

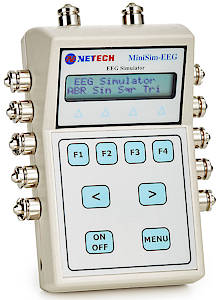

MiniSim EEG

MiniSim EEG is designed to test EEG instruments including Recorders and Sleep Study Monitors. This compact, microcontroller-based human patient simulator and rhythm generator has five separate floating outputs. It simulates Alpha-Beta Rhythm ABR, Sine, Square, and Triangle waveforms with user-selectable frequencies and amplitudes from 10 microvolts to 3.5 millivolts.

Highlight Features:

  • Compact and easy-to-use
  • Ideal for performance testing of all EEG instrumentation
  • Clean Microvolt Signals
  • Battery or AC operation

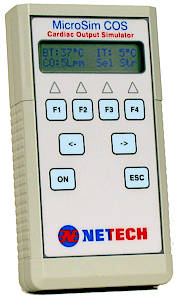

MicroSim - Cardiac Output Simulator

MicroSim COS Cardiac Output Simulator is a standalone instrument designed to simulate true cardiac output waveforms. It is a vital sign simulator ideal for testing the performance of Thermal Dilution Cardiac Output Monitoring systems. It simulates Baxter Edwards catheter systems and provides more testing capabilities than devices that require connection to another patient simulator.

Highlight Features:

  • Compact and easy-to-use
  • Baxter Edwards Catheter Compatible
  • Two Blood Temperatures and Two Injectate Temperatures
  • Battery or AC operation
