• VUW-7

Unit Dimensions:

8.5” W, 12” D, 7.25” H

Unit Weight:

8.25 LBS (3.74 kg)

Selectable Readouts:

Watts or Grams

Function Check Weights:

75g or 200g

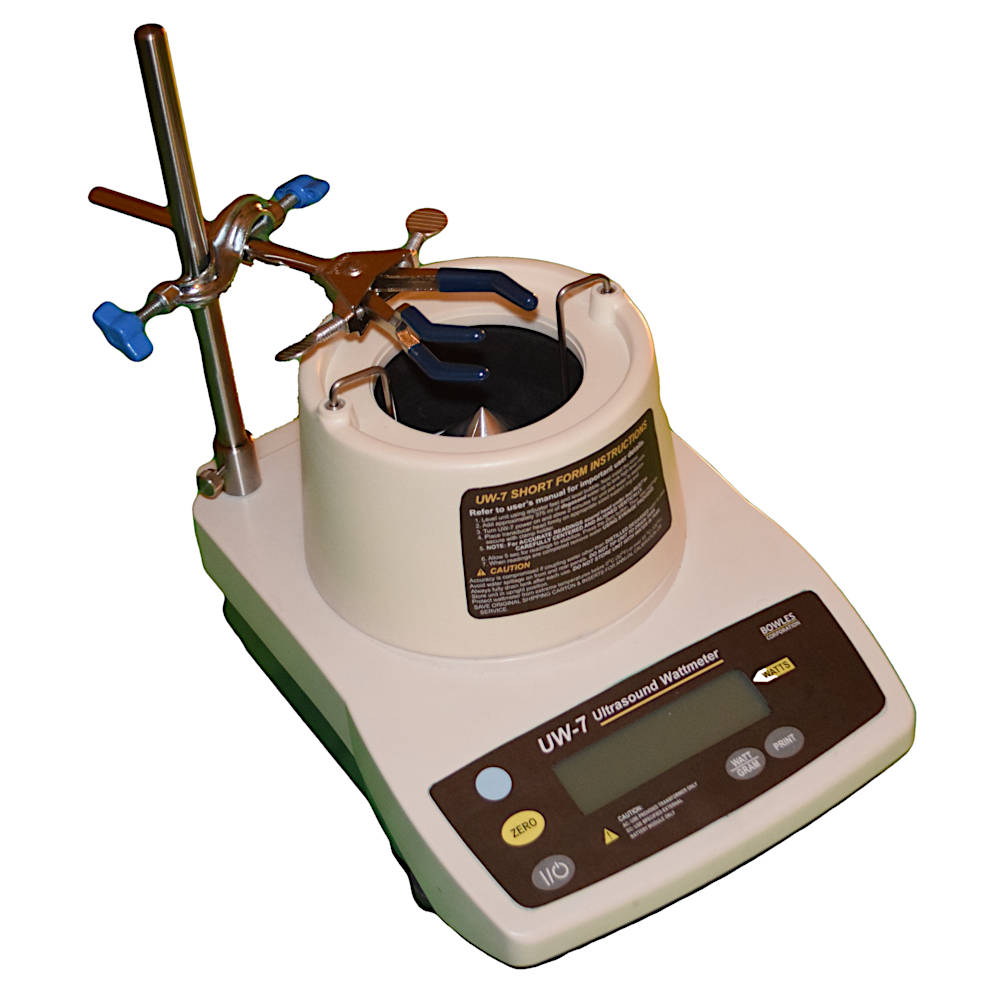

Whether you require one on location or for on-the-go testing, The VUW-7 Digital Ultrasound Wattmeter/Power Meter will perfectly suit your unique needs. It is a powerful and adaptable instrument that’s been meticulously built to provide a reliable method of verifying and calibrating the output of therapeutic ultrasound devices.

It’s engineered to precisely measure output by utilizing a state-of-the-art microprocessor and strain gauge bridge transducer to provide quick and consistent readings. Ruggedly designed and built, it’s compact, portable, and simple to operate; you’ll be able to quickly and regularly maintain prime condition of your ultrasound devices.


  • Special temperature compensated load cell design
  • High Accuracy 0.05%
  • 0.10 watt to 30-watt power measurement range
  • Fast auto zeroing button
  • Extremely fast 1.5-second readout stabilization
  • Measures pulsed or continuous power
  • 2.65" (6.7 cm) diameter sound head maximum
  • High contrast backlit display
  • Selectable readout in watts or grams
  • 120 or 240 VAC 50-60 Hz standard
  • 100 mW resolution
  • Accuracy = ±3% + one count reading


  • Product Code: VUW-7
  • Availability: Currently Not Available
