Delta 3300

Energy Output Measurement:

Maximum Energy: 800 J
Display Resolution:

Based on Auto Range

Auto Range:

2 - 9.99 J, 10-99.9 J, 100-800 J

Resolution: 0.01 J ( 2 -9.99), 0.1 J (10-99.9), 1 J (100-500)

Accuracy:

±1 % of reading ± 0.1 J (2-9.9), ± 1J (10-99), ± 2 % (100-500) ± 1J



Load Resistance: 50 ohms ±1 %; non-inductive (< 1 μH)

Sampling Time:

20 uS

Measurement Time Window:

60 ms

Absolute Max Peak Voltage:

5000 V

Absolute Max Peak Current:

100 A

Pulse Width:

60 ms



High-Level Output:

High Range:

100:1 amplitude attenuation

Low Range:

200:1 amplitude attenuation



Waveform Storage / Playback:

Discharge can be viewed via ECG outputs and paddles



Sync Time Measurements:

Timing Window: Starts: 40 ms at each R wave peak
Test Waveforms: All Waveform simulations available

Delay Time Accuracy:

±1 ms



Charge Time Measurement: 30 to 60 in steps of 15 seconds





TRANSCUTANEOUS PACEMAKER ANALYZER

Test Load Range: 50 -1100 Ohms in steps of 100 Ohms.
Accuracy: 50 - 500 ohm ±1 %,  500 - 1100 ohm ±1.5 %



Pulse Measurements:

Amplitude: 4 to 400 mA (50 ohm load)
Accuracy:

±1 % or ± 1 mA

Max. amplitude:

400 mA (50 Ohm Load)

Rate:

30 to 800 ppm

Accuracy:

±1 % or 2 ppm

Pulse Width:

0.5 to 50 ms

Accuracy: ±1 % or ±0.3 ms



Demand Sensitivity Test:

Waveforms: QRS, Square(SQR), Triangle(TRI), and Haversine (SSQ)

Waveform width:

40, 50, 60, 70, 80, 90, 100, 200, 300, 400 ms

Pacer Rate:

30 to 120 ppm



ECG Output:

Amplitude:

User Selectable 0.1 - 5 mV



Pacer Input (Load dependent):

Amplitude (50 ohm):

0 - 10 mV

Resolution (50 ohm):

25 μV

Amplitude: (500 ohm):

0 - 100 mV

Resolution: (500 ohm):

1 mV
Accuracy:

±2 %



Immunity Test:

Interference Signal: 50/60 Hz
ECG signal Amplitude:

0.5 to 5.0 mV



Refractory Period Measurement:

20 to 500 ms (both Pacing and Sensing)

Accuracy:

±5 ms





PATIENT SIMULATOR

ECG General:

Lead Configuration:

12-lead simulation RL, RA, LA, LL, V1-6

Output Impedance:

RL to All leads 1000 Ohms, V Leads: 1000 ohms to RL

High Level Output:

0.5 V/mV of low level (lead II)



Rates:

30, 40, 50, 60, 70, 80, 90, 100, 110, 120,130, 140, 150, 160, 170, 180, 190, 200, 220, 240, 260, 280, 300 & 310 BPM

Accuracy:    ±1 %
Amplitude: User Selectable 0.1 - 5 mV (Lead II)
Accuracy: ±2 % @ Lead II (SQR)



Arrhythmia Selections:

Ventricular Fibrillation Coarse (VFBC)
Ventricular Fibrillation Fine (VFBF)
Ventricular Tachycardia (VTAC)
Atrial Fibrillation (AFIB)



Performance Waveforms: Sine, Square, Triangle

Rate:

0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 Hz
Amplitude:

0.1, 0.25, 0.50, 1, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0 mV

Amplitude Accuracy:

±2 % (Square Wave -Lead II 1.0 mV)



Pacer Pulse:

Pulse Width:

10mS

Amplitude:

1.0 mV (Lead II)

Accuracy: ± 2 %





GENERAL INFORMATION

Temperature Range:

Operating:

+15°C to +35°C

Storage:

0°C to +50°C



Display:

Type:

LCD with LED backlight



Data Input/Outputs: RS-232C (1) for Computer control
Power: 7.4 Volt Li-Ion Battery 100-230 VAC input, 850 mA DC Charger
Housing:

High impact ABS Plastic case

Dimensions (D x W x H): 10.25 x 6.25 x 2.5 Inch, 26 X 16 x 6.4 Cm
Weight: 1.5 kg / 3.3 lbs

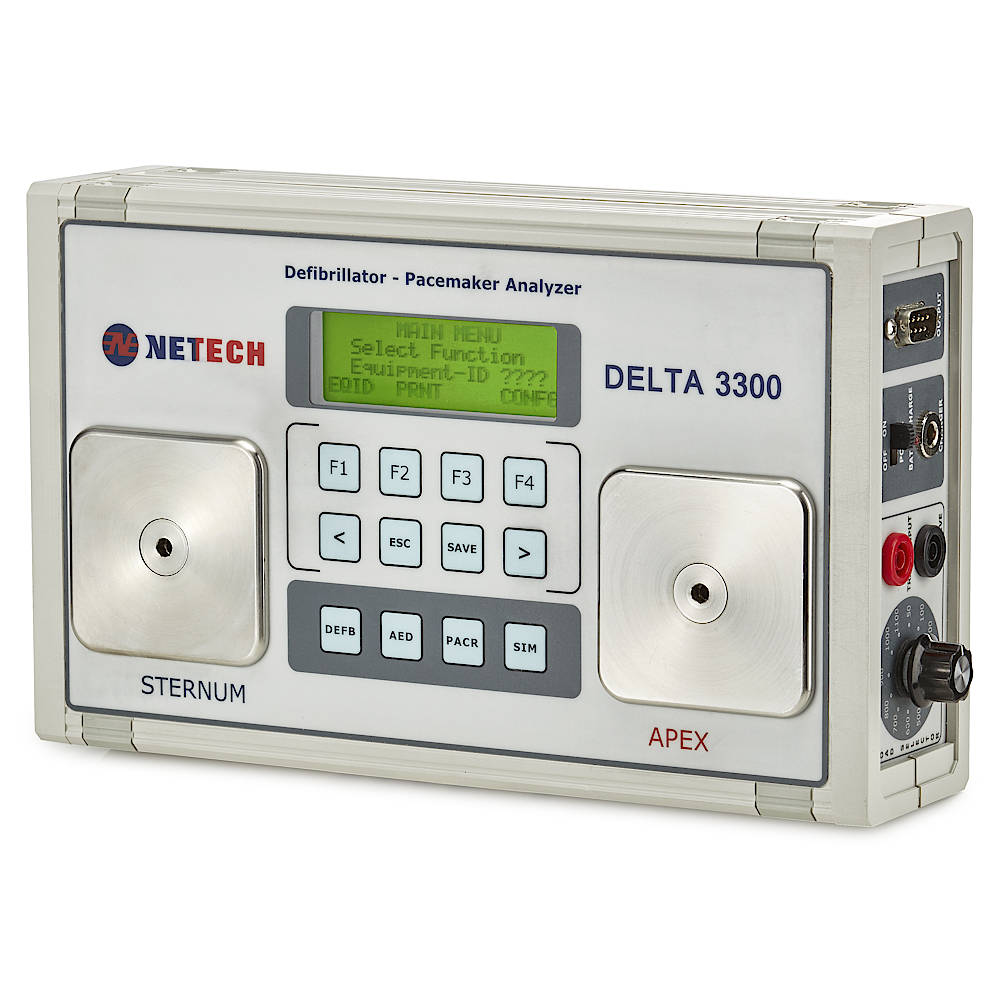

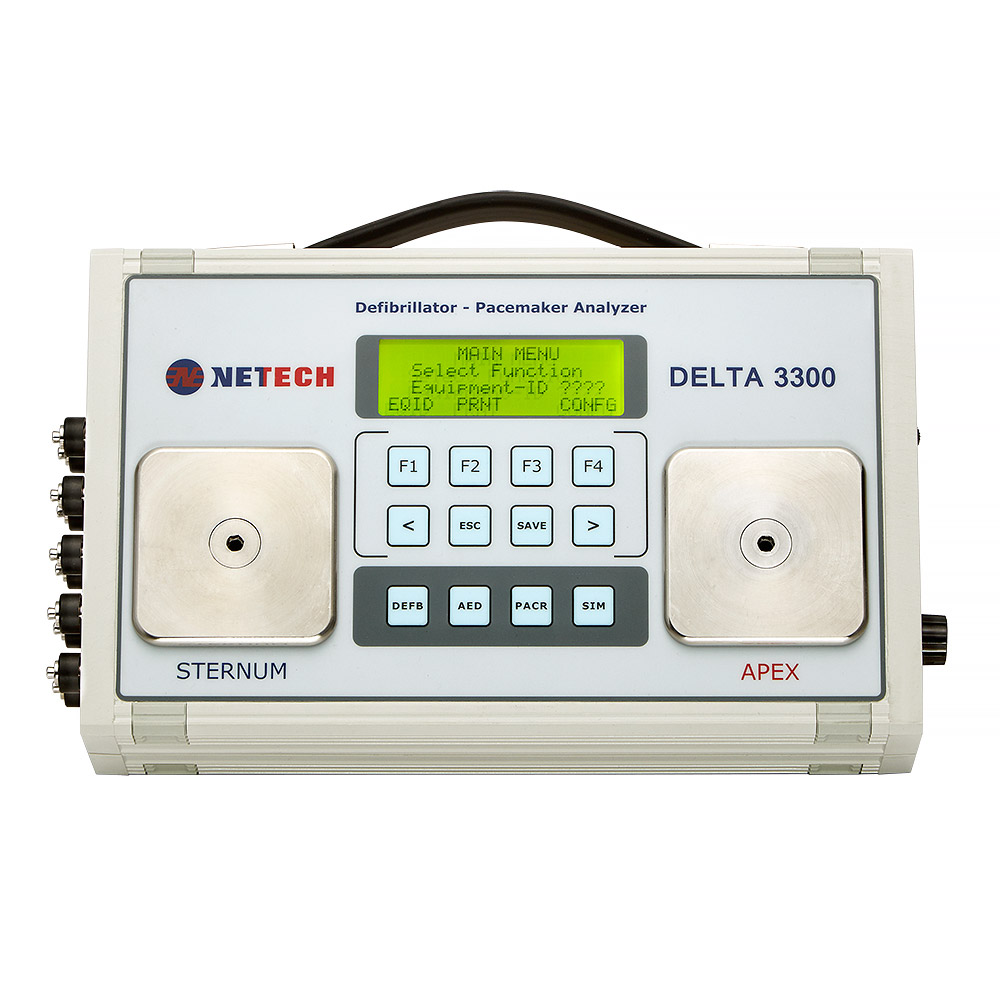

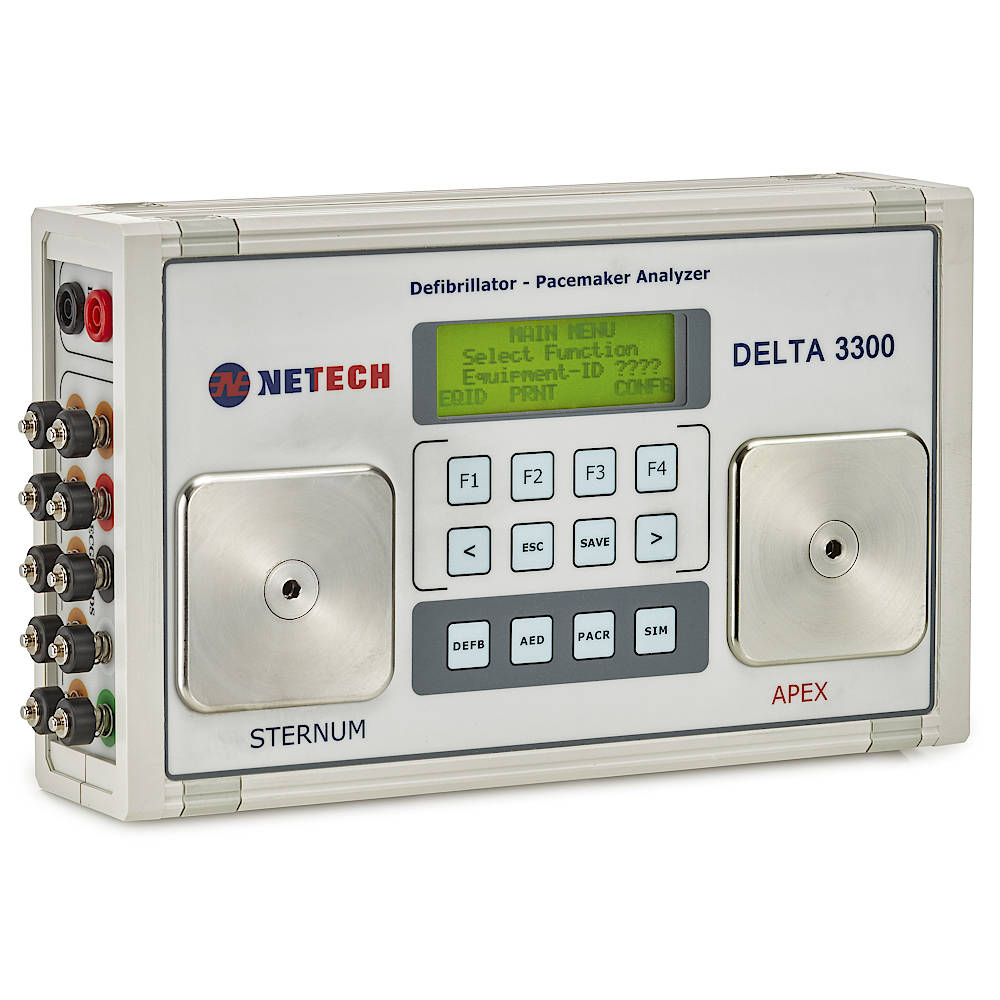

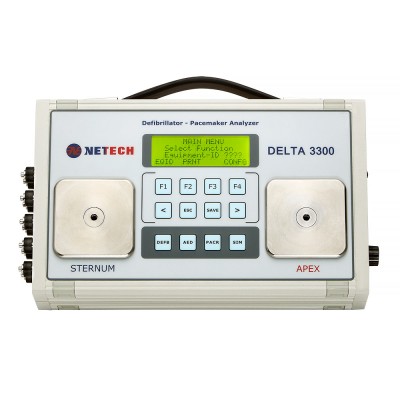

DELTA 3300

Defibrillator / Transcutaneous Pacemaker Analyzer

Keep your vital life-support equipment in prime condition with the DELTA 3300 Defibrillator / Transcutaneous Pacemaker Analyzer. This purposefully engineered analyzer safeguards the operation of your defibrillators and external (transcutaneous) pacemakers.

The high adaptability of the device makes it capable of defibrillator testing, transcutaneous pacemaker analysis, and 12-Lead ECG/arrhythmia simulations. You can also routinely track your devices’ performance overtime. Test results can be conveniently saved in the internal memory, uploaded to your PC, and printed using ProComPrint software. (CD included with the unit.)

All that capability is built into one durable, yet lightweight, easy-to-use device!

FEATURES

  • Compact, lightweight and easy-to-use
  • Tests all defibrillators including AEDS
  • Measures monophasic and Bi-Phasic waveforms
  • Energy and cardioversion measurement
  • Pacemaker loads from 50 to 1100 Ohm
  • Large LCD Display with Backlight
  • Pacer amplitude, rate, pulse width
  • Waveform storage and playback
  • Li-Ion rechargeable battery
  • Save, upload, and print test results using Netech ProComPrint software
  • Hard carrying case included
  • 2 Year Warranty
