EXPMT 2000

Transthoracic Pacer:

Test Load:

50 Ohm fixed
12 Selectable test loads from 100 to 1000 ohms.

Current:

0.1 to 25 mA

Accuracy:

±10%, 1 to 10 mA,±5%, 10 to 200 mA

Pulse Rate:

30 to 800 PPM

Accuracy:

±1% or 2 ppm

Pulse Width:

0.5 to 80 ms

Accuracy:

±10%, 0.5 to 5 ms,±5%, 5 to 25 ms±1%, 25 to 80 ms

Sensed and Paced Refractory Period:

25 to 500 ms



Transvenous Pacer:

Test Load:

50 Ohms ± 1%

Current:

0.1 to 25 mA

Accuracy:

±10%, 0.1 to 10 mA ±5%, 1 to 25 mA

Pulse Rate:

30 to 800 PPM

Accuracy:

±1% or 2 ppm

Pulse Width:

0.5 to 80 ms

Accuracy:

±10%, 0.5 to 5 ms±5%, 5 to 25 ms
±1%, 25 to 80 ms

Sensed and Paced Refractory Period:

25 to 500 ms

Accuracy:

±10 ms

50/60 Hz Immunity Test:

0 to 102 mV in 6.8 mV steps


Demand SensitivityWaveforms:

SQR, TRI, and SSQ

Amplitude:

0 to 100 mV.

Width:

10, 25, 40, 100, and 200 ms

Pacer Rate:

30 to 120 ppm

A - V Interval:

0 to 999 ms



General:

Display:

4 Line LCD Display

Housing:

ABS Plastic

Power Requirements:

9V Battery or AC Operation

Physical Dimensions:

7.75 x 4.0x 1.5 inches (19.7 x 10.2 x 3.8 cm)

Weight:

1 lbs (0.9 kg)



Environmental

Operating Temperature:

59° to 95° F (15° to 35° C)

Storage Temperature:

32° to 131° F (0° to 55° C)

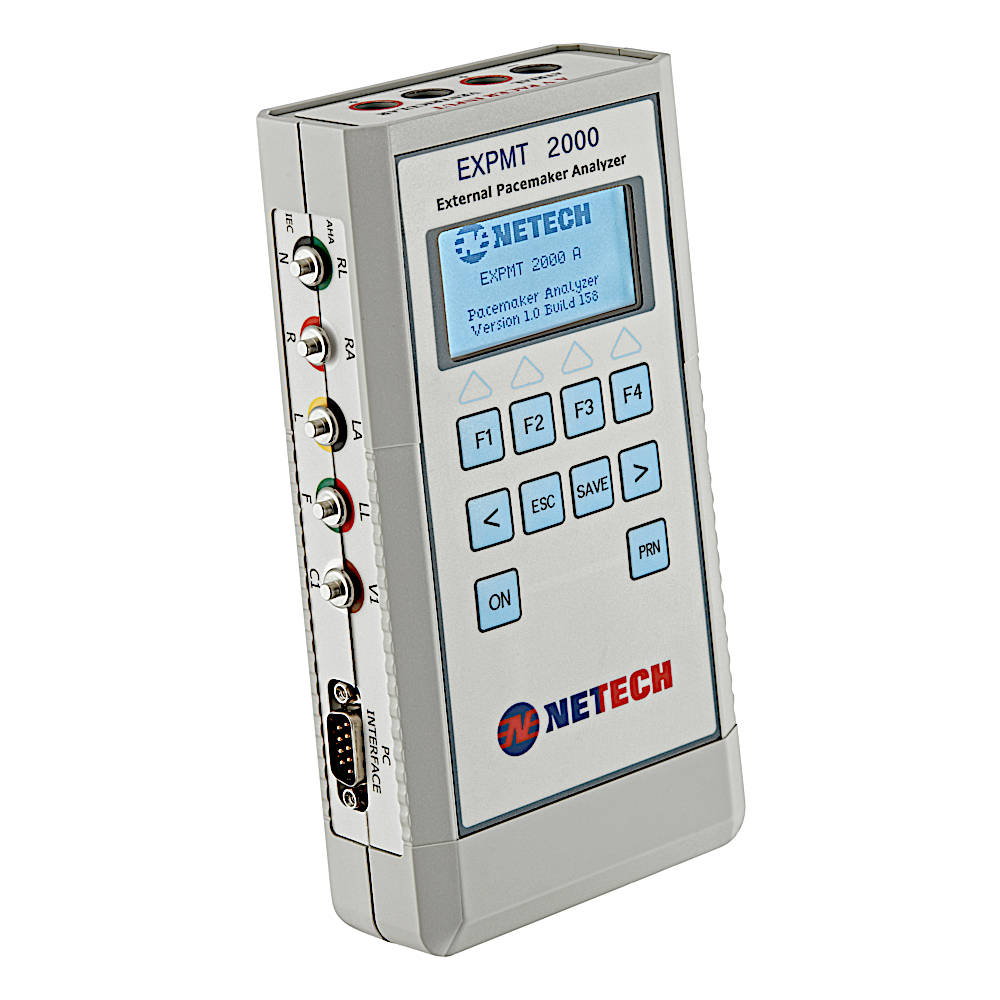

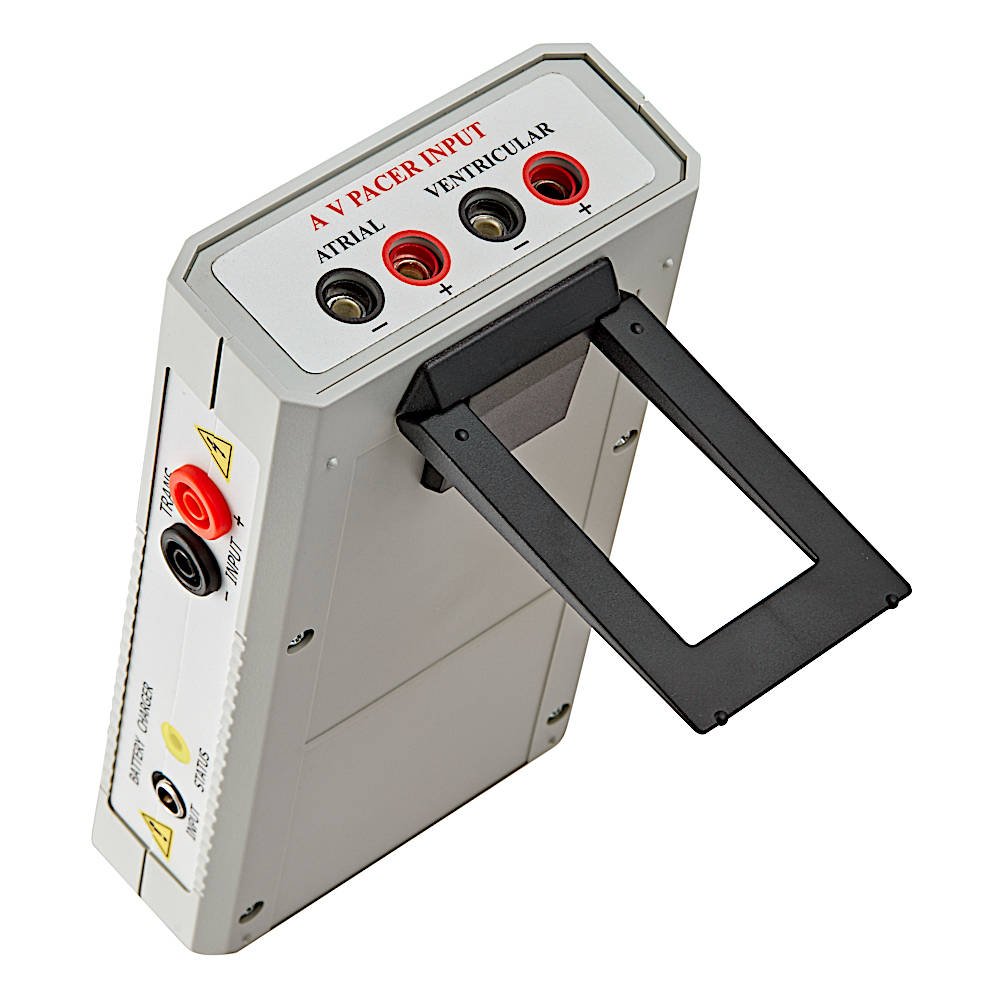

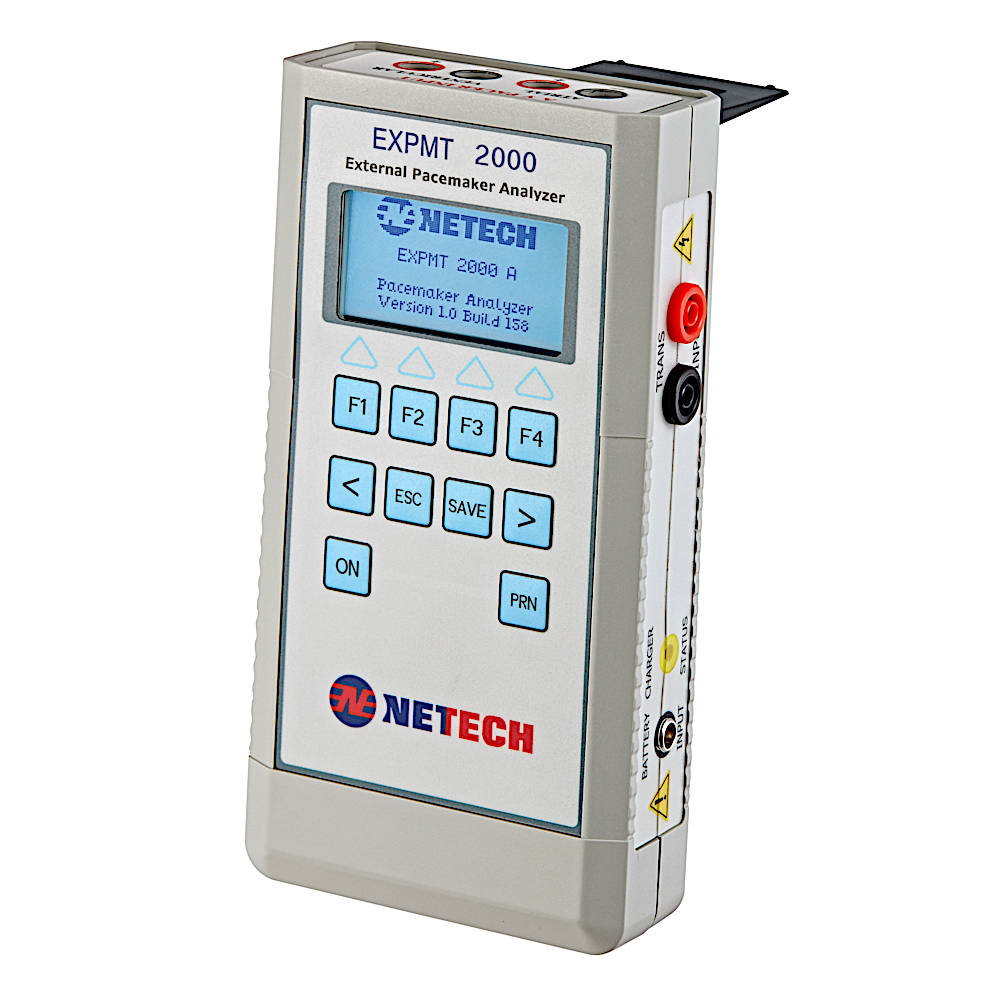

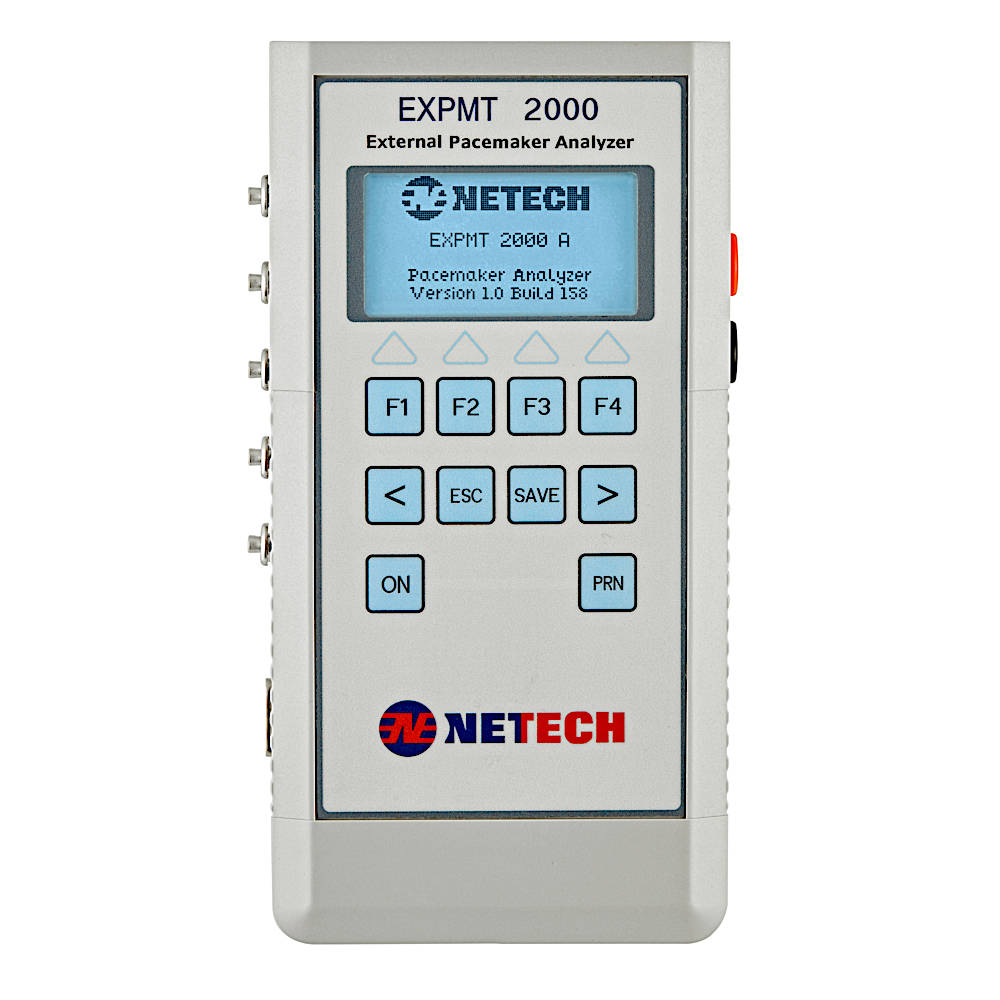

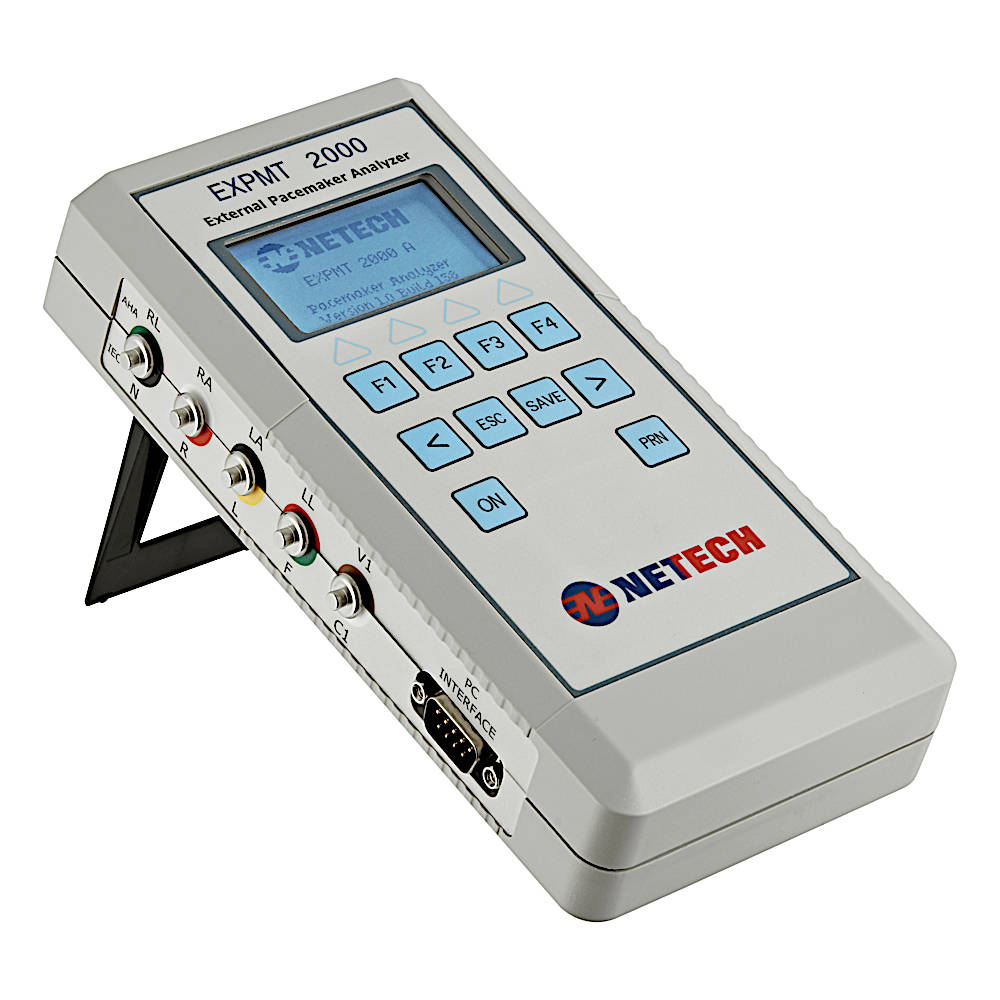

The EXPMT 2000 External Pacemaker Analyzer is the next evolution of the best-selling EXPMT 100 Pacer Analyzer. You can maintain the effectiveness of your life-saving external pacemakers with this upgraded, FDA approved analyzer.

The EXPMT 2000 is a comprehensive device that meticulously verifies all functions of any external pacemaker. Its adaptability allows you to test a wide range of pacemakers including transvenous, transcutaneous (transthoracic), and atrial and ventricular sequential pacemakers.

You’ll find it remarkably easy to navigate the analyzer with an instinctual, menu-driven interface that features eight tactile keys and a large four-line LCD screen. You can easily read and analyze all your key measurements, which are simultaneously presented on the display.

Five ECG snaps are standard along with an RS-232 serial port that allows for printing both heading and test measurements on a separate printer. Information can also be handily sent to an external device to keep long-term records.

With a compact body that’s been thoughtfully designed for convenience, the EXMPT 2000 also provides an unmatched value with a price tag that’s half of other competing models.

FEATURES

  • Compact, lightweight and easy-to-use
  • Fast and Accurate
  • Large 4-line LCD Display
  • 12 selectable test loads
  • 5 ECG snaps
  • RS-232 Interface
  • Print Key
  • Demand sensitivity tests
  • Sensed and paced refractory
  • 60 / 50 immunity tests
  • Pulse Energy amp; A-V Interval
  • Includes a hard-carrying case.
