MiniSim 1000 (Basic)

  • MiniSim 1000 (Basic)

ECG Normal Sinus

Rate:

30, 60, 70, 80, 90, 100,120, 150, 180, 210, 240, 270, 300, 350 BPM

Amplitude:

 0.15 to 5mV, High Level Output: 0.5 Volt/mV of Low Level (Lead II)



Test Waveforms

Sine, Triangle, Square Rate: 0.1 to 100 Hz

0.1 to 1 Hz in 0.1 Hz increments

1 to 10 Hz in 1 Hz increments, 10 to 100 Hz in 10 Hz increments



Power Requirements:

One 9 Volt alkaline battery or optional AC adapter




Physical Characteristics:

Dimensions:

5.5 X 3.5 X 1.5 inches (13.9 X 8.9 X 3.8 cm)

Weight:

10 oz ( 0.3 kg)



Temperature Requirements:

Operating:

59 to 95° F (15 to 35°C)

Storage:

32 to 131° F (0 to 55°C)

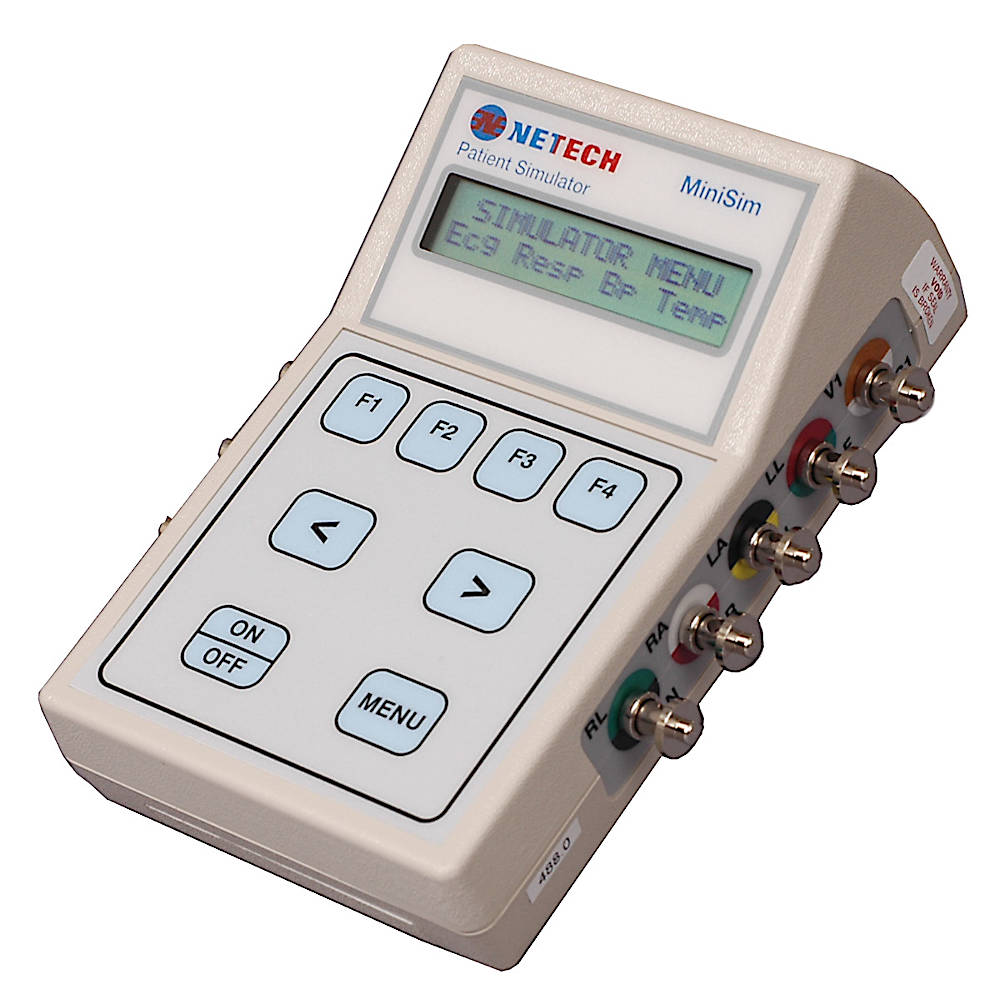

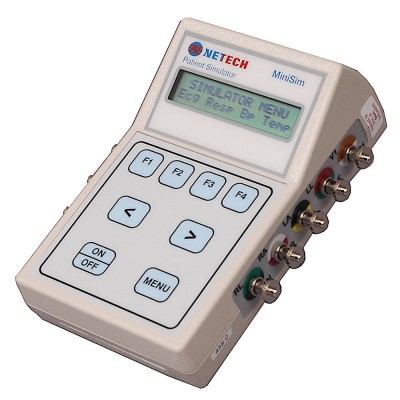

The MiniSim 1000 Basic provides essential features, which are built into a powerfully compact device. It’s an arrhythmia simulator designed to test the performance of all ECG monitoring instrumentation quickly and easily.

Don’t be fooled by its name; it may be “basic”, but it has a lot to offer you. The MiniSim-12 provides full 12-lead ECG simulation with 14 user-selectable rates ranging from 30 to 350 BPM, and 14 user selectable amplitudes from 0.15 to 5 mV. The performance waveform includes Sine, Square and Triangle. There are 14 user-selectable waveform rates from 0.1 to 100 Hz and amplitudes from 0.15 millivolt to 5 millivolts.

The instrument is also designed to simulate 45 different arrhythmias including atrial, ventricular, tall T wave, ST elevation, ST depression, myocardial infarction, blocks, pulse and pacer waveforms.

As it is, the MiniSim Basic packs a high degree of functionality and versatility that will cover your ECG testing requirements. If you find your needs increasing, you can conveniently upgrade the device’s software to receive the MiniSim 1000’s full function patient simulator features; that includes blood pressure, respiration, and temperature simulation (YSI 400/YSI 700 compatible).

FEATURES:

  • Best value
  • Easy-to-use
  • Compact Size
  • Menu-driven operation
  • Large LCD Display
  • Tactile keypad
  • Battery or AC operation
  • Product Code: 300-0.1
  • Availability: In Stock
