MiniSim EEG


ABR Waveforms at 1 kHz, 0.64 μV

Spike waveform, Sine, Square, and Triangle



0.1, 0.5, 2, 50, and 60 Hz


10, 30, 50, 100, 500 μV, 1,2, and 2.5 mV

Key Pad:

8 tactile membrane Keypad


2 line 16 character LCD Display


High Impact Plastic



Operating Range:

59° to 95° F (15° to 35° C)

Power Requirements:

9V Alkaline Battery

Storage Range:

32° to 122° F (0° to 55° C)


Physical Dimensions:


5.5" x 3.5" x 1.5" (13.75 x 8.75 x 3.75)


10oz (0.28 kg)



The brain is an incredibly complicated system, and being able to track its electrical activity is an equally complicated task. Safeguard the reliable performance of your devices that track the brain’s electrical activity with the MiniSim EEG Simulator, which can test recorders and sleep study monitors.

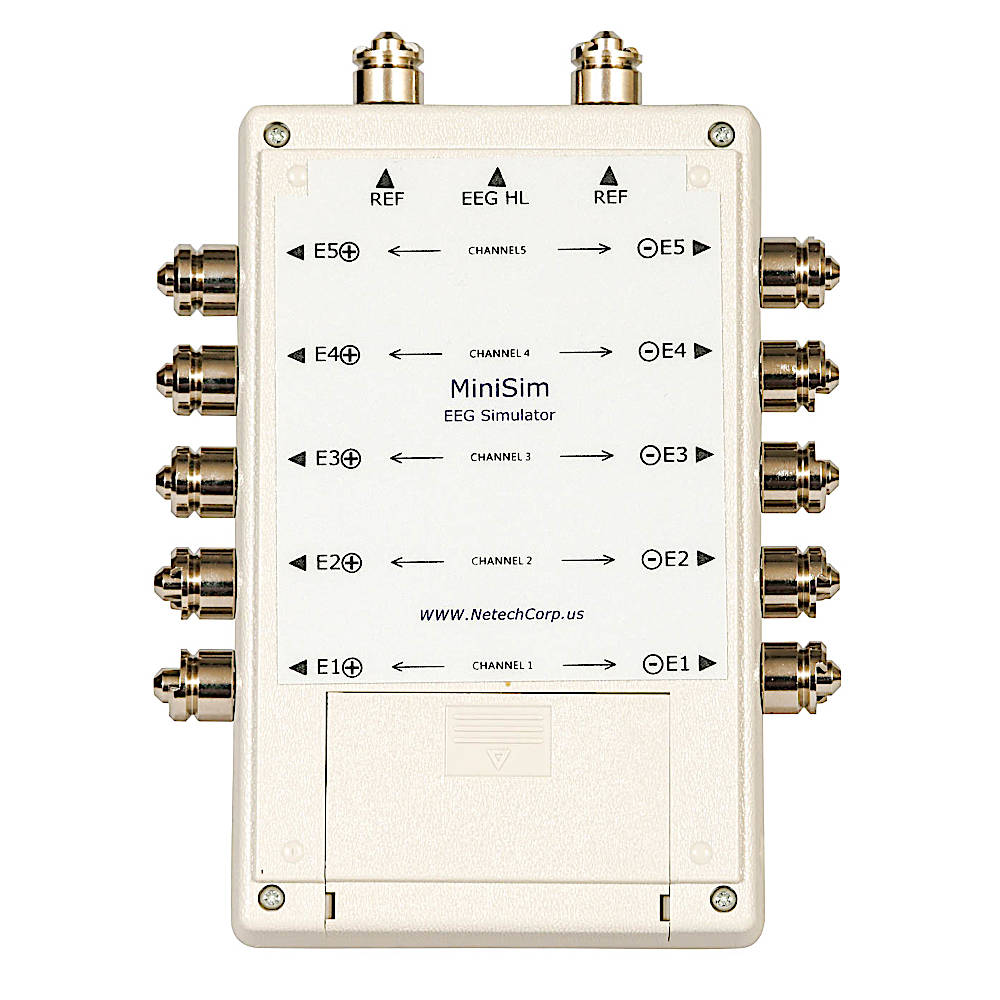

This compact, microcontroller based instrument has five separate floating outputs. It’s engineered to be a resourceful testing device that simulates Alpha-Beta Rhythm (ABR), Sine, Square and Triangle waveforms with user selectable frequencies and amplitudes from 10 microvolts to 3.5 millivolts.

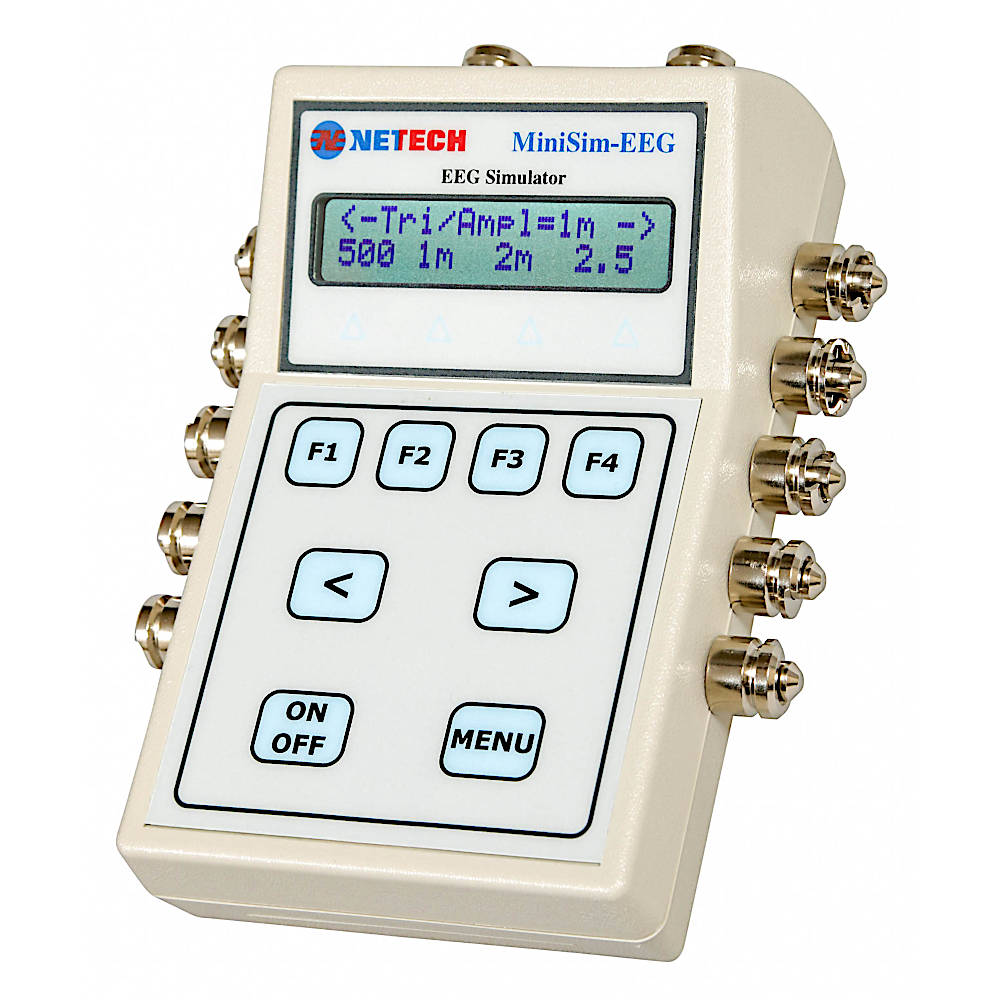

Simple to operate, the MiniSim EEG Simulator is menu driven via 8 tactile keys and a large LCD screen. High accuracy is provided by its advanced microprocessor with a crystal oscillator and precision voltage reference. Additionally, Netech's patented cup electrode connector makes it easier to attach electrodes to the device.

The MiniSim EEG Simulator offers quick and intuitive testing of all EEG instrumentation, so you can be confident in their performance.


  • Large LCD screen
  • Clean microvolt signals
  • Selectable amplitudes
  • Selectable frequencies
  • Compact, rugged case
  • Ideal for sleep study EEG monitor testing
