MultiPro 2000

Line Voltage:

Range: 1 to 300 V
Accuracy: ± 2% + 1 V

Leakage Current:

Range: 0 to 2500 μA auto ranging
Accuracy: DC to 100 KHz: ± 2% FS ± 1 Digit
100 KHz to 1 MHz: ± 4% FS ± 1 Digit


Resistance:

Range: 0 to 2500 mW, auto ranging
Accuracy: ± 2% FS ± 1 Digit

Device Current:

Range: 0 to 20 A
Accuracy: ± 2% FS ± 1 Digit

ECG Simulator:

12 Lead Normal Sinus Rhythm and Pulse Waveforms:
Amplitude: 13 selectable steps 0.1, 0.2, 0.3, 0.4, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 and 4.5 mV
Rate: 14 selectable steps, 30, 60, 70, 80, 90, 100, 120, 150, 180, 210, 240, 270, 300, and 350 BPM

Performance Waveforms:

Square, Triangle, and Sine

Display:

2 Line 48 characters Display

Controls:

ON/OFF Power Switch, Sixteen Tactile Feel Keys.
Ten Color Coded ECG Jacks, Two Input Jacks
RS 232 Serial Port connection

Physical Dimensions:

Size: 10.25 x 6.25 x 2.5 inches (26.00x 15.9 x 6.4 cm)
Weight: 4 lbs (1.8 kg)

Power Requirements:

110 VAC 50-60 Hz, 20 A / 220 VAC 50-60 Hz, 10A

Environmental:

Operating Temperature: 59º to 95º F (15º to 35º C)
Storage Temperature: 32º to 122º F (0º to 50º C)

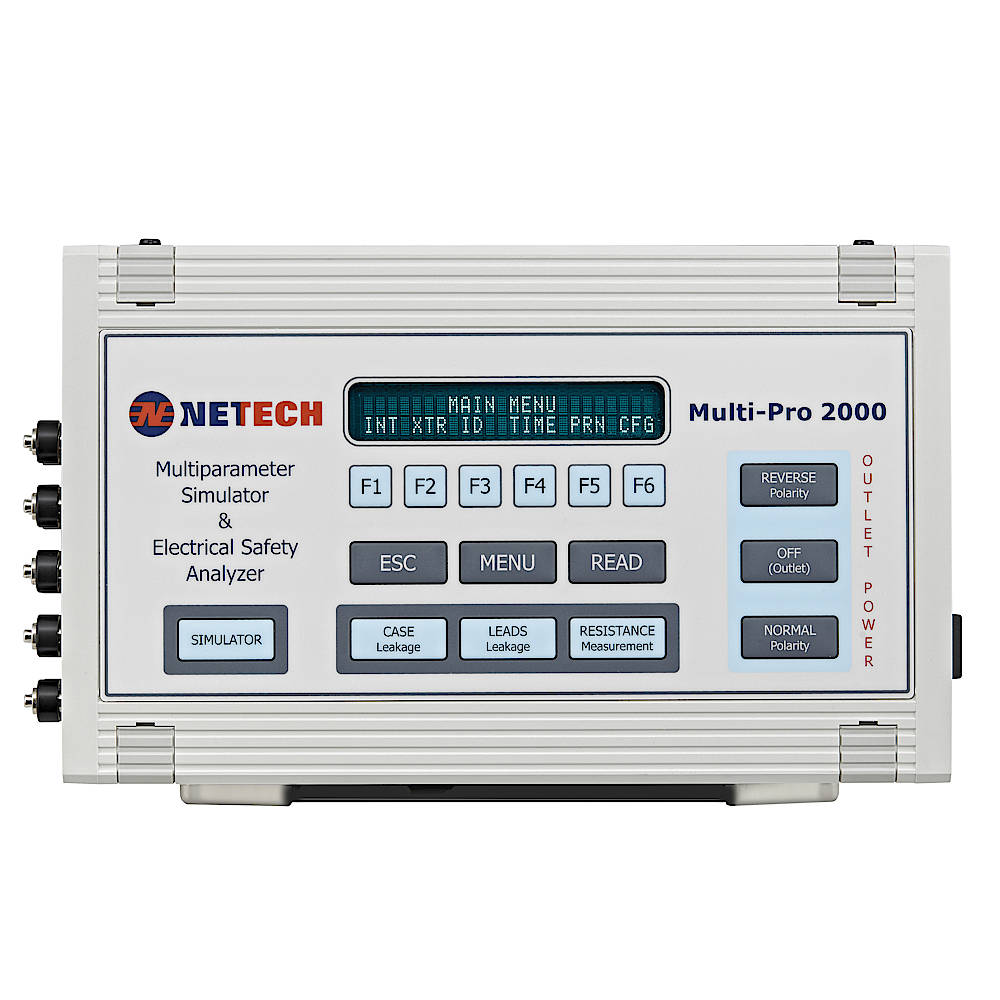

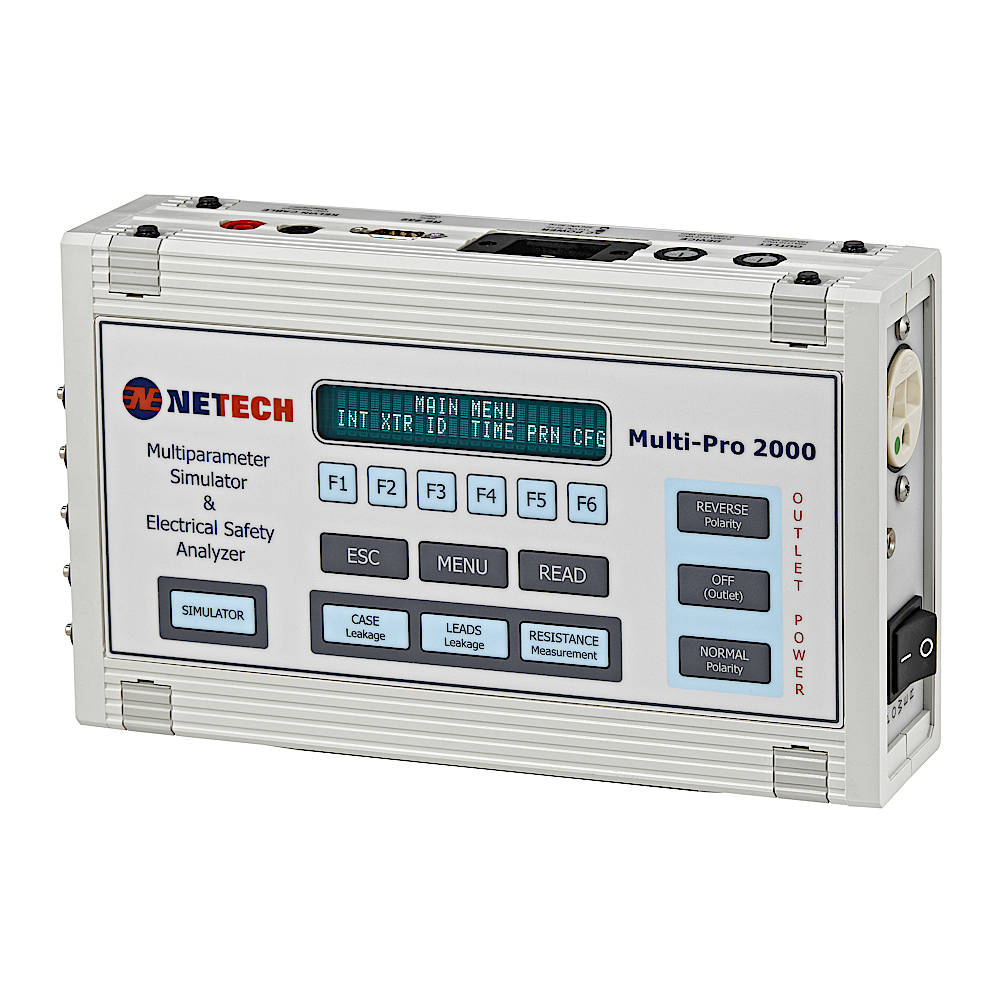

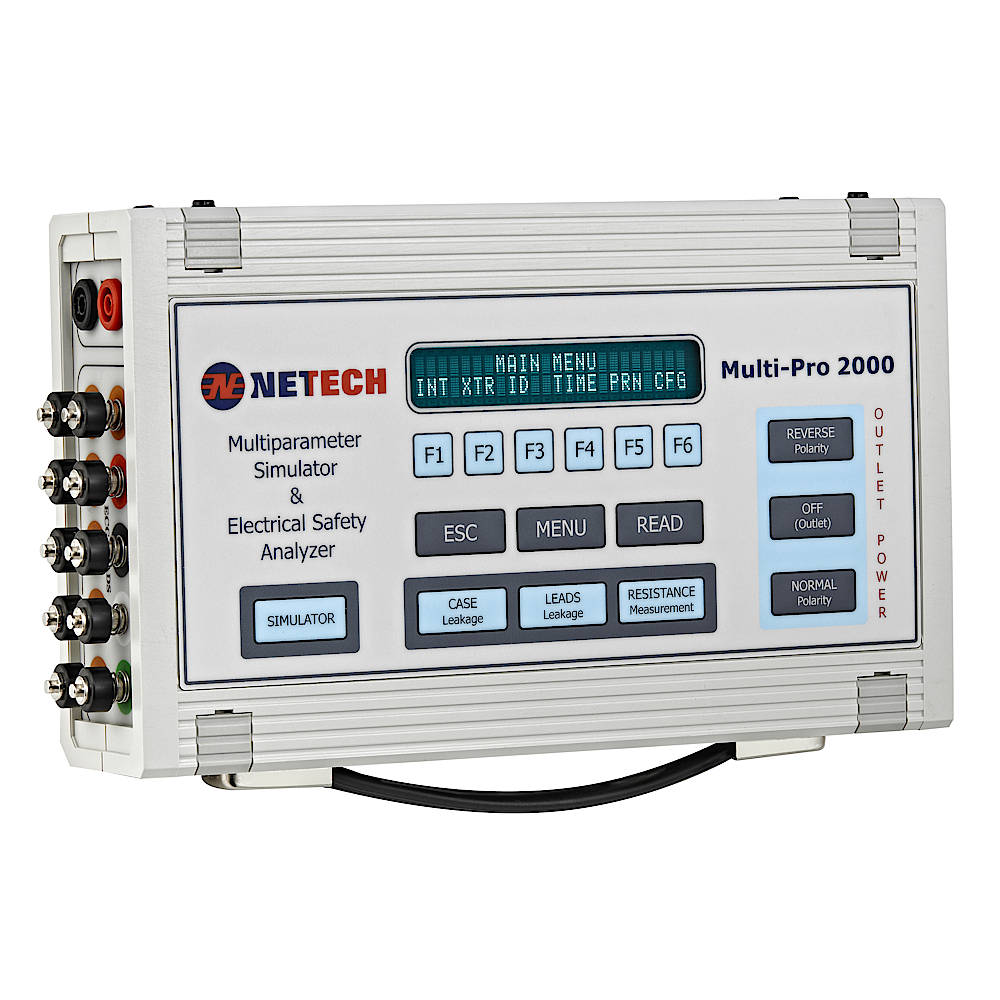

MultiPro 2000 - Full-Function Electrical Safety Analyzer & Multi-Parameter Simulator

Maximize your electrical safety testing capabilities, and carry fewer devices with the full-featured MultiPro 2000 (PN: 560).

Attentively engineered to adapt to different circumstances, the analyzer can be tested per US standards (ANSI/AAMI ES1, NFPA 99) and international standards IEC60601-1 by user selectable patient loads.

The Multi-Pro also pulls double-duty for you; functioning as a measurement device and as a waveform simulator. With a large storage capacity, it can save over 5000 test records. To track long-term data, your measurements can be uploaded to a PC for printing and record-keeping using the software included with the unit.  Optional standalone “Equipment Maintenance Software” is also available for PCs. The RS-252 port further simplifies the download of test results to any computer or serial printer.

Living up to its high-functionality, this instrument specifically tests wall outlet polarity and measures line voltage, chassis resistance, chassis leakage current, and lead leakage current. It also performs lead isolation testing and point-to-point testing. Calibrated test points are readily available for verifying its performance.

An ECG Simulator displays a normal sinus rhythm waveform with 13 amplitude and 14 rate selections. Square, Sine, and Triangle waveforms for performance testing are available with 14 frequency and 13 amplitude selections.

The MultiPro 2000 Electrical Safety Analyzer is an unbeatable all-in-one solution for your electrical safety testing needs. Its compact design makes it highly suited for on-the-go testing, and that makes it an ideal tool for residential and biomedical service technicians.

FEATURES

  • Microprocessor controlled
  • Menu operated
  • Compact, lightweight, rugged
  • Accurate and reliable
  • 12 Lead ECG and performance waveforms
  • 20 Amp rating
  • Kelvin Cable
  • RS-232 Port
