UniMano 1000

  • UniMano 1000


 0.1% of FS +/- 1 Digit


2 Line 16 character LCD Display

Media Compatibility:

Non-corrosive fluids and gasses

Maximum Pressure:

Twice the maximum rated pressure

Environmental Operating Range:

32 Degrees to 122 Degrees F (0 Degrees to 50 Degrees C)

Pressure Connection:

 Standard units - CPC Quick couplings 1/8 inch flow or luer lock


High impact ABS plastic case


9V Alkaline Battery. Optional AC Adapter available

Low Battery Indicator:

LO BAT on display if battery Voltage is less than 6.8 volts.

Physical Dimensions:

5.5 x 3.5 x 1.5 inches (13.75 x 8.75 x 3.75 cm)


10 oz (0.28 kg)

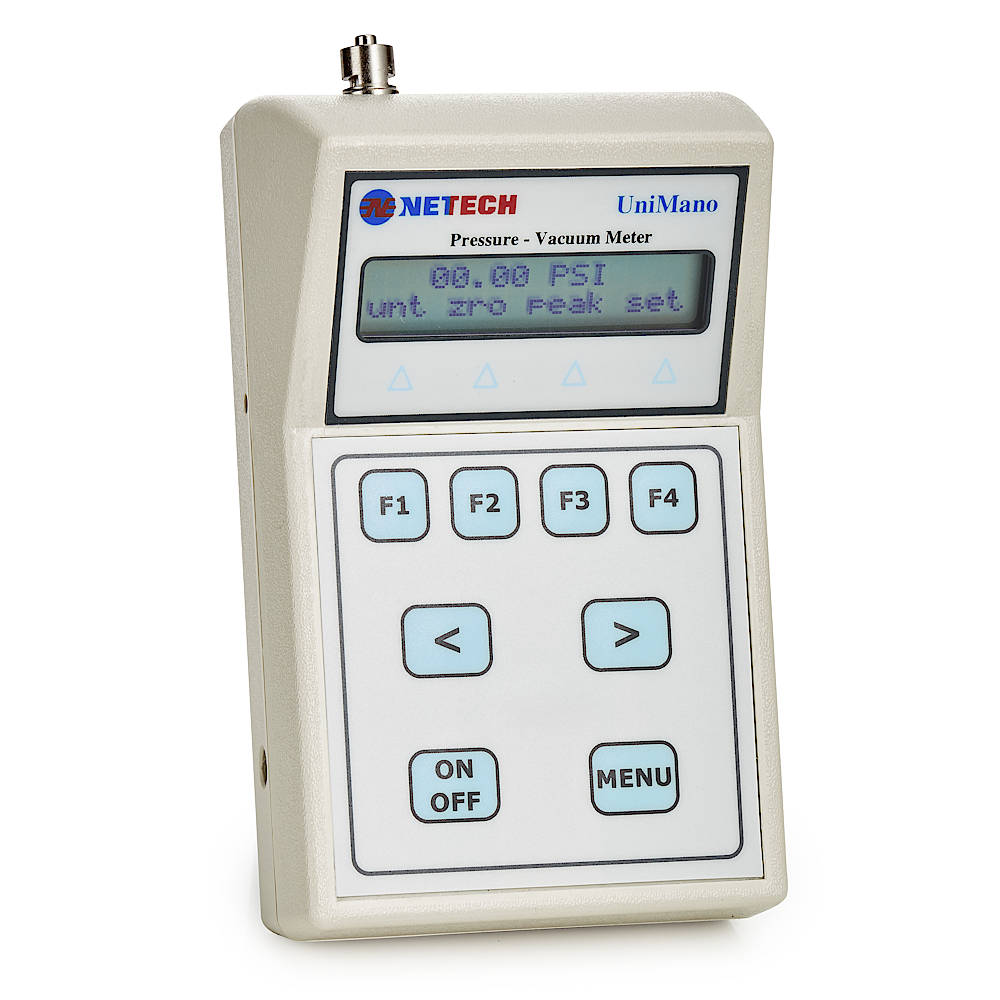

UniMano is an advanced pressure and vacuum meter designed for very precise measurements of pressure and vacuum in medical, laboratory and industrial applications. The UniMano Pressure Vacuum Meter combines such features as fluid compatibility, temperature compensation, linerity correction, leak detection, peak hold, over pressure alarm and user selectable units of measurement.

The UniMano Pressure Vacuum Meter is menu driven and simple to operate. All the functions are set from a 2 line 16 character LCD Display and a key pad with 8 tactile keys. Using state of the art technology, UniMano provides superior accuracy and performance. Many software upgrades will be made available to accommodate additional features and advanced functions.


  • Microcontroller based
  • Pressure and Vacuum measurement
  • 8 engineering units of measurement
  • Fluid and gas compatible
  • Auto zero
  • Leak detection
  • Peak hold
  • Gauge amp; differential models
  • High Accuracy amp; Resolution
  • Temperature compensated
  • Two line 16 character LCD display
  • Membrane key pad
  • Compact - palm size


  • Product Code: UM1000
  • Availability: In Stock
