DigiMano 2500

  • DigiMano 2500



Graphics 128 x 64 LCD

Two Models:

Absolute & Differential

Pressure Ranges:

Available from 2 PSI to 200 PSI


0.1%–0.25% full scale, +/-1

Media Compatibility:

Non-corrosive fluids and gases.

Pressure / Vacuum Port:

Quick Connect / Lure Lock

Over Pressure:

2 X Pressure range.

Operating Temperature:

0 degree C to 40 degree C


Li + rechargeable battery and Bat Charger

Physical Dimensions:

Size: 4.75 X 2.5 X 1.5 in


11.9 oz (0.34kg)

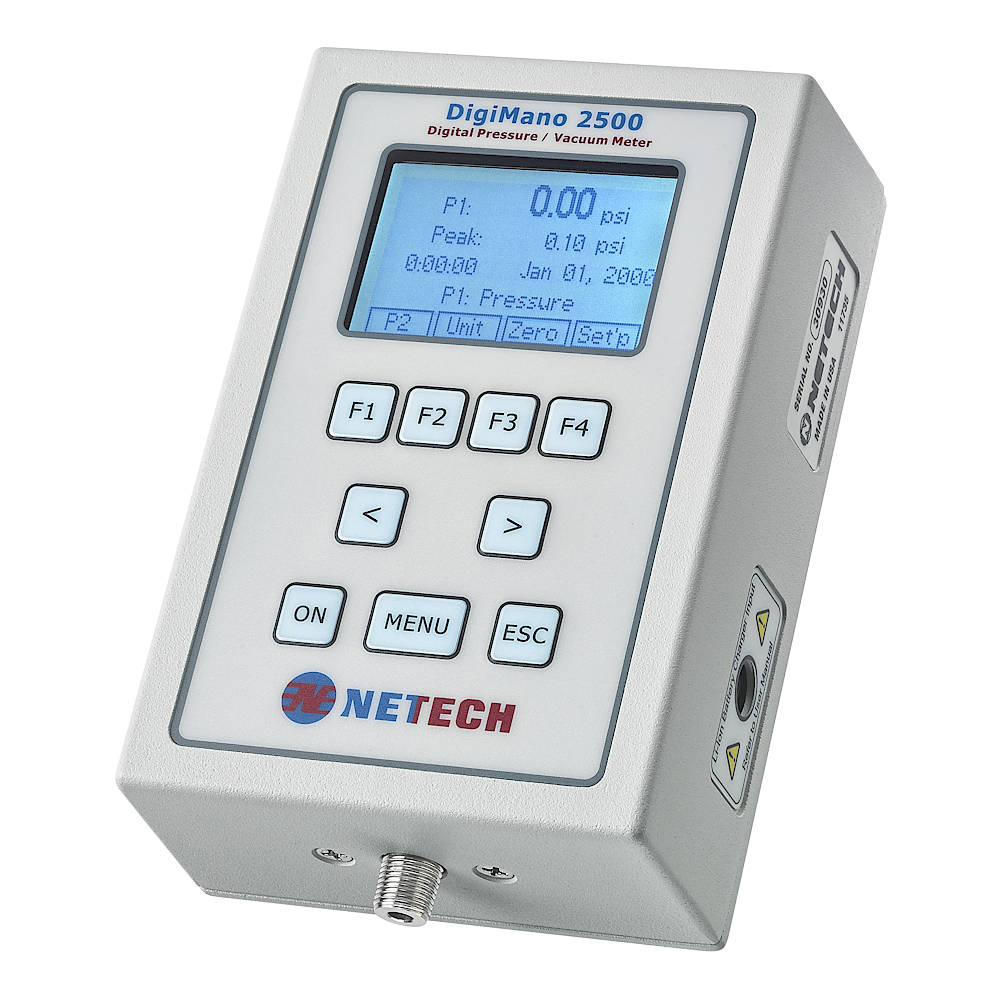

Digimano 2500, Digital Pressure / Vacuum Meter is a versatile, high performance digital pressure and vacuum meter. The precision instrument is designed for use in numerous medical and industrial applications. DigiMano 2500 is compatible with a wide range of gases and fluids.

It is housed in a rugged aluminium case with a sealed membrane keypad. The built in serial port, dual relay control out puts, real time Data output, internal Data storage memory, are ideal for industrial process control as well as automated pressure calibration applications. DigiMano 2500 is available in three different models, Gauge, Absolute and Differential with pressure ranges from 2 PSI to 200 PSI.


  • Large Graphics Display
  • Accuracy: 0.1%–0.25% full scale, +/-1
  • Non Corrosive Fluid Gas
  • Multiple Engineering Units
  • Peak Pressure Reading
  • Automatic Zero
  • RS 232 Communication Port
  • Dual Relay control Out Put
  • User selectable Out Put settings
  • Real Time Clock
  • Data storage capability
  • Rugged Aluminium Case
  • Sealed Membrane Switches
  • Product Code: DM2500
  • Availability: In Stock
