MiniSim 1000 (Advanced)

ECG Normal Sinus:

Rate:

30, 60, 70, 80, 90, 100,120, 150, 180, 210, 240, 270, 300, 350 BPM

Amplitude:

0.15 to 5mV, High Level

Output:

0.5 Volt/mV of Low Level (Lead II)



Test Waveforms:

Sine, Triangle, Square Rate: 0.1 to 100 Hz

0.1 to 1 Hz in 0.1 Hz increments

1 to 10 Hz in 1 Hz increments, 10 to 100 Hz in 10 Hz increments



Tall T Wave:

Test Waveform@ 70 BPM, Atrial Pacer, Ventricular Pacer*, Paced Rhythms - Variable from 0.1to 2mS, R Wave detection - Variable form 10 to 120 ms

Pulse: 2mS Pulse of 1mV amp @ 4 sec intervals



Arrhythmias:

ST Segment Analysis, ST Elevation and Depression, ST Depression Positive and Negative Slope, Myocardial Infarction, Atrial, Ventricular, Blocks



Respiration:

Normal Physiological Simulation:

Base Line

Impedance:

250, 500, 750, 100 Ohms

Delta Impedance:

0.1, 0.5, 1.0, 1.5 Ohms

Rates:

15, 30, 60, 120 BPM

Apnea:

Off, Continuous, 12 Seconds and 32 Seconds Apnea-Bradycardia

Accuracy:

Delta Impedance 5% of selection, Rate: 1% of selection



Blood Pressure:

Impedance:

350 Ohms

Excitation:

2 to 16 Volts

Sensitivity:

5uV/V/mmHg

Static:

 0, 5, 10, 20, 25, 30, 40, 50, 100, 150, 200, 300 mmHg

Dynamic:

50/10, 60/20, 70/30, 80/40, 100/60, 120/80 mmHg

Accuracy:

±2% FS. ±1 mmHg



Synchronized with all normal sinus rates



Physiologically track all arrhythmia selections



Temperature:

Compatibility:

YSI 400/700, 25/37 Degree Centigrade

Accuracy:

±1% of reading



General:

Size:

5½ x 3½ x 1 ½ inches (13.97 x 8.9 x 3.8 cm)

Weight:

10 Oz (0.28 kg)

Case:

High Impact Plastic



Environmental:

Operating Temperature:

59° to 95° F (15° to 35° C)

Storage Temperature:

32° to 131° F (0° to 55° C)

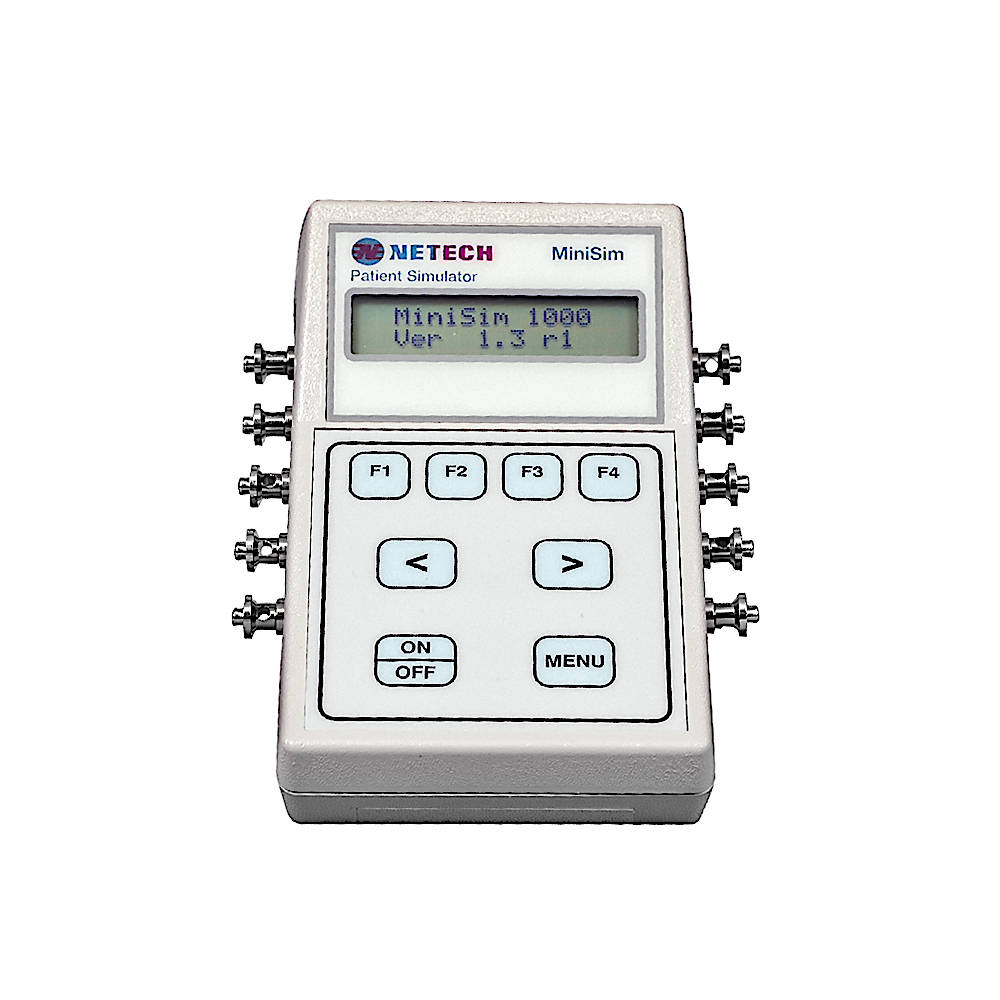

Have all your patient simulation needs handled within one device with The MiniSim 1000 Advanced model. The device measures several metrics and functions as a multi-parameter patient simulator designed to efficiently test the performance of patient monitoring systems.

This device is an ideal all-in-one solution that can simulate ECG, arrhythmia, blood pressure, respiration, and temperature. It goes the extra mile for you by also being able to replicates performance waveforms including sine, triangle, pulse and square wave.

Full 12 lead ECG simulation with 14 user selectable rates from 30 to 350 BPM and 14 user selectable amplitudes from 0.15 to 5 mV are all available. Sine, square, and triangle performance waveforms are simulated with 14 user selectable rates from 0.1 to 100 Hz.

This model has unbeatable versatility in its testing, and can simulate 45 different arrhythmias including atrial, ventricular, tall T wave, ST elevation, ST depression, myocardial infarction, blocks, pulse, and pacer waveforms. In addition, two invasive blood pressures are simulated with a choice of 12 static pressures and 6 dynamic waveforms.

Respiration is simulated with 4 rates, 4 baseline impedance, and 4 delta impedance selections. Apnea may be off, continuous, and with either 12 or 32-second apnea bradycardia. Finally, the temperature is available at either 25° and 37° C (77° and 98.6° F). (Optional pressure and temperature interface cables are available for most manufacturers.)

Powered by a 9-volt alkaline battery with a typical life of 40 continuous hours, the MiniSim 1000 provides an unmatched variety of patient simulations in an efficient, well-designed package. It is an incredibly powerful tool that’s built for on-the-go testing, and it eliminates the need for you to carry and learn to operate multiple devices.

FEATURES:

  • 12 lead ECG
  • 45 arrhythmias
  • ECG performance waveforms
  • 2 blood pressure simulations
  • Respiration / Apnea
  • Temperature
  • Accurate, portable, and easy-to-use
  • Menu-driven operation
  • Large LCD Display
  • Tactile Keypad
  • Battery or AC Powered



Write a review

Please login or register to review
  • Product Code: 300-1.3
  • Availability: In Stock
